Transmission Electron Microscope

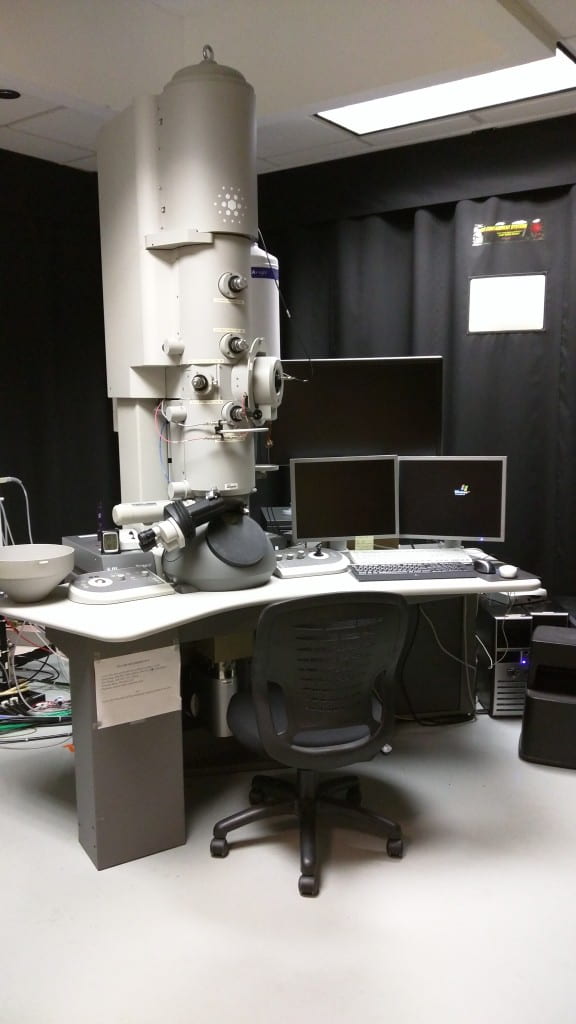

Instrument Images

CH0250

INSTRUMENT INCHARGE

Priyabrat Dash

Professor

Nanocatalysis, Ionic liquid mediated material synthesis, Gas sensors studies

BASIC INFORMATION

Make & Model : FEI, Tecnai G2 TF30-ST ? 8,00,000,00 /- ( As per stck register Value is EUR 961290 + Rs 1631405) Year of purchase-24.12.2014 Year of installation-2014 Source of funding-INSTITUTE
Department : Chemical Engineering
Location : Room No.011, Ch Dept.
Category : Category - I
Status : Non-Functional

BOOKING CLOSED

PRINCIPLE:

TEM uses an electron beam to form high-resolution images of objects – including their internal structures – on the nanoscale.

APPLICATION:

Nanomaterials characterization

EXPERIMENTS & CHARGES:

EXPERIMENT - 1

Name of Experiment : Image analysis (Grid to be supplied by user)
Condition of Analysis : As per requirement
Service Units : 1 Experiment
Academic & Educational Institution Charges : ₹ 3,540.00
R & D National Laboratory Charges : ₹ 5,900.00
Industry Charges : ₹ 7,080.00
International Charges : ₹ 9,440.00
Available for Sample Booking : No
Remarks :

EXPERIMENT - 2

Name of Experiment : Image analysis (Grid to be supplied by NITR)
Condition of Analysis : As per requirement.
Service Units : 1 Experiment
Academic & Educational Institution Charges : ₹ 4,425.00
R & D National Laboratory Charges : ₹ 7,080.00
Industry Charges : ₹ 8,260.00
International Charges : ₹ 10,620.00
Available for Sample Booking : No
Remarks :

EXPERIMENT - 3

Name of Experiment : Solid sample preparation+TEM analysis
Condition of Analysis : As per requirement.
Service Units : 1 Experiment
Academic & Educational Institution Charges : ₹ 9,440.00
R & D National Laboratory Charges : ₹ 14,160.00
Industry Charges : ₹ 16,520.00
International Charges : ₹ 21,240.00
Available for Sample Booking : No
Remarks :
